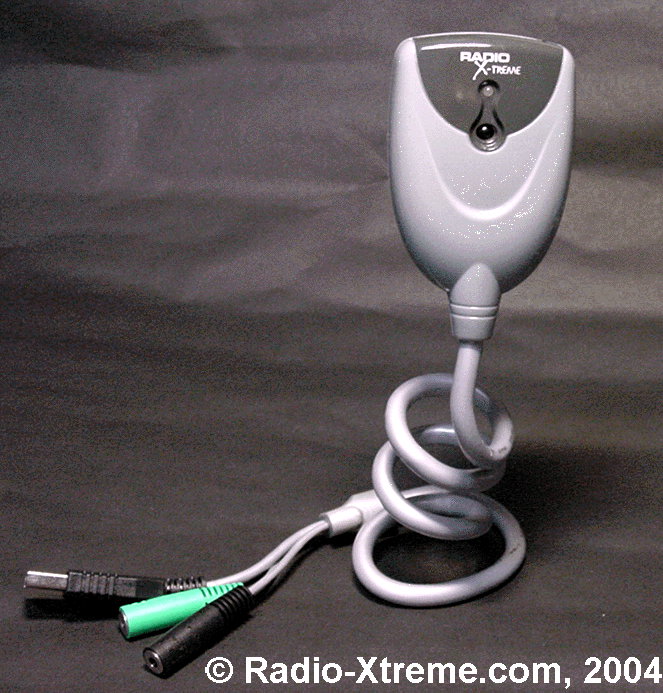

RadioXtreme brings to you a totally new breeze of experience that liven up your daily computing routine. Working on the PC will never be as monotonous with your favourite radio channels on the latest news updates and music.

RadioXtreme comes equipped with an IR Remote Control to provide the full remote control over radio functions and more. Listen and record your favourite music channel is simply a button away. It even lets you shut down the PC with the embedded Auto Windows shutdown function. Use your PC as a remote control unit

For the business executive, RadioXtreme remote control comes preprogrammed for Power Point . Impress your colleagues and business associates by controlling your Power Point presentation remotely without any additional expensive equipment.
By presetting the USB Radio to an unused Channel, you may even can use wireless FM microphone to further enhance your presentation.

If that's not enough, the RadioXtreme remote control has reserved additional 4 program group which you can configure to work with your other favourite application. Take a look at our Projects Page.

(A) Specifications:

• Frequency range : VHF Band II (87MHz to 108MHz)
• Antenna impedance : 75 o hms , 3.5mm Mono Jack
• Interface/ Device : USB 1.1 / HID Class
• Line Out (Audio) : 3.5mm Stereo Jack
• EMC Compliant : FCC, CE and C-Tick
• Power Consumption : 50mA (max)

(B) System Requirements:

• IBM PC or 100% compatible computer
• USB 1.1 / 2.0 Port
• Pentium CPU with 128MB Ram or above
• Windows 98se, Windows 2000, Windows ME, Win XP
• 20MB of available hard disk space
• Earphone or Active Speaker
• CD-ROM drive
• Optional: Sound card (for recording to PC HDD)

(C) Bundle Softwares:

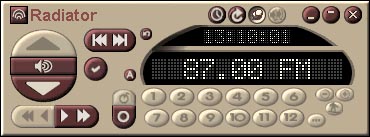

RX Radiator ...the power to play:


an intuitive radio player with comprehensive radio function controlled such as Mute, Sleep with Windows Shutdown Mode, Scan and Preset Stations, Channel Surfing, Recording etc.

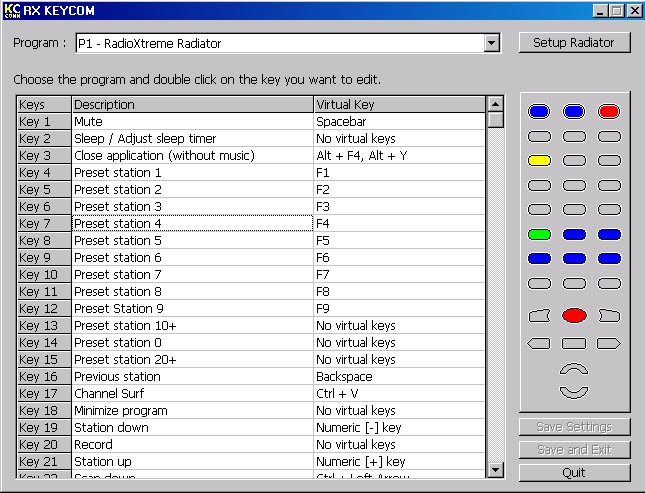

RX Commander ...the power to control:


a powerful software which provide the remote controlling of the radio player and Powerpoint presentation, giving you full remote steering to your listening experience. It also let you to configure up to 4 program groups of the remote control to work with applications which incorporate Accelerator Hot Keys.

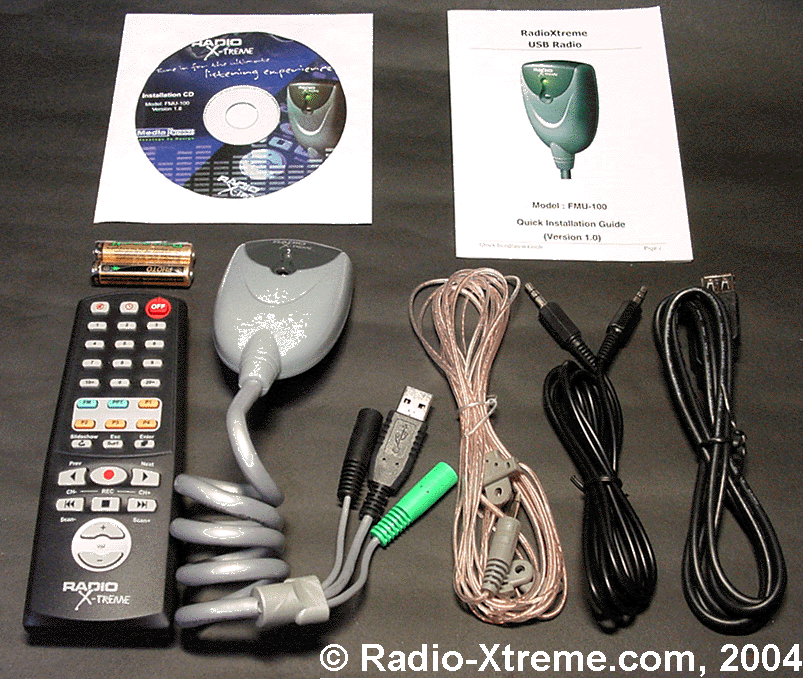

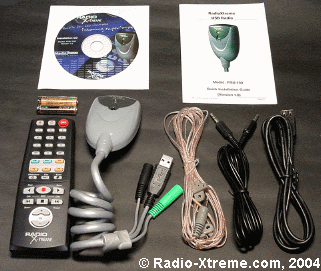

(D) Package Contents:

- 1 x CD Software
- 1 x USB FM Radio
- 1 x Line-out Cable
- 1 x USB Cable
- 1 x Remote Control Unit
- 2 x AAA Batteries
- 1 x Dipole Antenna Cable
- 1 x Quick Installation Guide
